Applications
Determination of setting time and soundness of cement paste of standart consistence. The vicat method is usually specified as the test use to determine the water content which will produce the desire consistence.
Features
BP 303
ASTM C.187 C.191 / AASHTO T.131
ASTM C.187 C.191 / AASHTO T.131
Technical Data
| Type | Parts Name | Specifications | Qty |
|---|---|---|---|

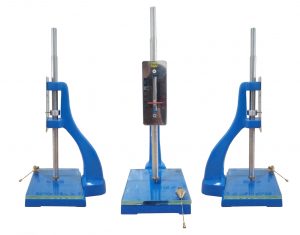

| BP 303.1 | Vicat Apparatus | Cast alumunium frame stainless steel rod 0-55mm scale | 1 Set |
| BP 303.2 | Instant Needle | Stainless steel needle with footing brass thread | 1 Pc |
| BP 303.3 | Final Needle | Stainless steel needle with footing brass thread | 1 Pc |
| BP 303.4 | Conical Ring Mold | 70 mm base dia, 60 mm base dia | 1 Pc |
| BP 303.5 | Glass Plate | 10 mm thick, 12 cm x 12 cm | 1 Pc |
Supplied without:
BG 065/4 Glass plate 25 x 25 cm
BG 018/5 Graduated Cylinder 500 ml
BG 043/1 Stop Watch
BG 045/1 Rubber Glove
BG 048/1 Scrapper
BA 206/46 Pan & Cover
