Applications
Applications include determining the bearing capacity of the soil in situ, designing for statistic loads on spread footing and repetitive and non repetitive plate loading test of the soils and flexible pavements.
Features
ASTM D.1194 / AASHTO T.235
Technical Data

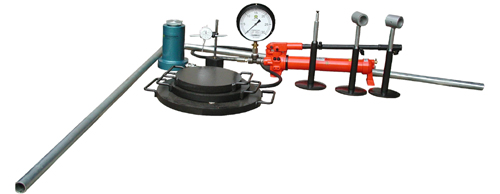

| Type | Parts Name | Specification | Qty |
|---|---|---|---|
| BS 104.1 | Hydraulic Jack Operated | 30 tons capacity manometer read hand operated | 1 set |
| BS 104.2 | Manometer 6" diameter | 30 tons capacity 0.5 ton increment | 1 pc |
| BS 104.3 | Height Adjustment | Machined Steel | 1 pc |
| BS 104.4 | Hydraulic Cylinder | 30 tons capacity | 1 pc |
| BS 104.5 | Hydraulic Hand Pump | 10.000 psi capacity | 1 pc |
| BS 104.6 | Hydraulic Hose | 10.000 psi 180 cm length | 2 pcs |
| BS 104.7 | Reference Beam | Steel pipe 150 cm span | 1 set |
| BS 104.8 | Square Bearing Plate | 12' x 12' machine steel, 1" thick | 1 pc |
| BS 104.9 | Circular Bearing Plate | 6" diameter machine steel, 1" thick | 1 pc |
| BS 104.10 | Circular Bearing Plate | 10" diameter machine steel, 1" thich | 1 pc |
| BS 104.11 | Circular Bearing Plate | 12" diameter machine steel, 1" thick | 1 pc |
| BS 104.12 | Circular Bearing Plate | 18" diameter machine steel, 1" thick | 1 pc |
| BS 104.13 | Circular Bearing Plate | 24" diameter machine steel, 1" thick | 1 pc |
| BS 104.14 | Circular Bearing Plate | 30" diameter machine steel, 1" thick | 1 pc |
| BG 002/6 | Dial Indicator | Range 30 x 0.01 mm | 1 pc |
| BG 003/1 | Dial Holder | Magnetic | 4 pcs |
