Applications

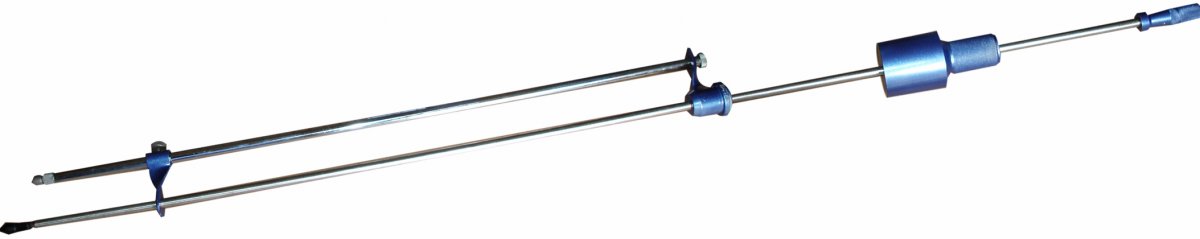

Dynamic Cone Penetrometer (DCP) provides fast, accurate, in place soil shear strength in mm/blow and an indication of different strength layers. This instrument can penetrate soil to the depth of the rate of penetration to CBR (California Bearing Ratio)
Features
BS 109
Technical Data
| Type | Parts Name | Specifications | Qty |
|---|---|---|---|
| BS 109.1 | Handle | Stainless steel | 1 Pc |
| BS 109.2 | Hammer | Machined steel panted 8kg weight | 1 Pc |
| BS 109.3 | Guide Rod | Stainless steel, 16mm dia drop, height 575m | 1 Pc |
| BS 109.4 | Anvil | Machined steel panted | 1 Pc |
| BS 109.5 | Penetration Rod | Stainless steel, 16mm dia 107cm length | 1 Pc |
| BS 109.6 | Cone | Hardened steel 60 angle, 20mm dia | 1 Pc |
| BS 109.7 | Penetration Scale | Stainless steel, 16mm dia 100m scale | 1 Set |
| BS 109.8 | Carrying Bag | Water proof cloth | 1 Pc |
| BS 109.9 | Open & Wrench | Hardened steel | 1 Pc |
