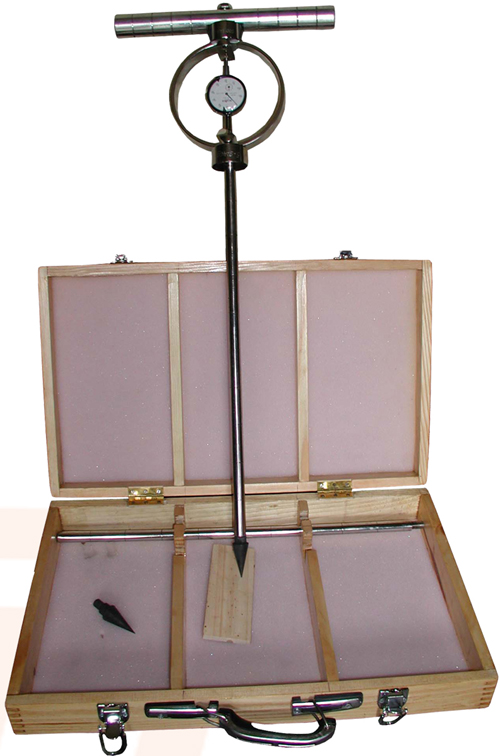

Proving Ring Penetrometer

Applications
Used to determined the bearing capacity of subgrades or to measure oil compaction, light and easy to handle in the field, a rapid means to determining the penetration resistence of soil in shallow exploration survey.
Features
BS 108
Technical Data
Type Parts Name Specifications Qty
BS 108.1 Penetration Rod Plated steel 50 cm length with 5 cm increment line 2 Pcs
BS 108.2 Penetration Cone Machined steel, hardened plate, 5 cm sq cm cross section area 2 Pcs
BS 108.3 Holder Wooden handle with T-Piece connector 1 Pc
BS 106.4 Carrying Case Wooden case 1 Pc
BS 106.5 Proving Ring 100 kg capacity 1 Pc
BS 106.6 Open & Wrench Hardened Steel 2 Pcs
